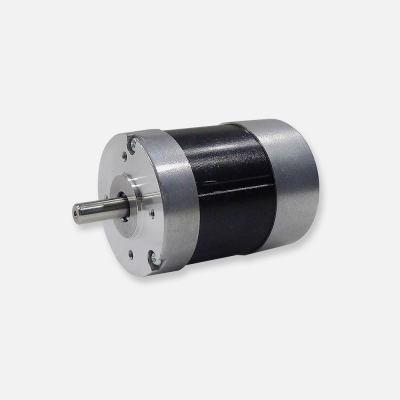

| 综合机能参数 |
| 绕组陆续方式：：： | Delta |
| 霍尔散布角度：：： | 120 Deg. Electrical angle |
| 径向间隙：：： | 0.025mm /460g |
| 轴向间隙：：： | 0.025mm /400g |
| 径向最大接受力：：： | 75N @ 20mm from the flange |
| 轴向最大接受力：：： | 15N |
| 绝缘等级：：： | B |
| 介电强度：：： | 500VDC for one minute |
| 绝缘电阻：：： | 100MΩ min., 500VDC |
| 机能数据 |
| 型号 | 极数 | 相数 | 额定电压 | 额定转速 | 持续堵转转矩 | 额定转矩 | 额定功率 | 峰值转矩 |
| Units | VDC | RPM | N.m | N.m | W | N.m | ||
| 57BYA044B040X-01 | 4 | 3 | 24 | 4000 | 0.096 | 0.08 | 33.5 | 0.24 |
| 57BYA044B060X-01 | 6000 | 0.096 | 0.08 | 50 | 0.24 | |||
| 57BYA054B020X-01 | 2000 | 0.19 | 0.16 | 33.5 | 0.48 | |||
| 57BYA054B040X-01 | 4000 | 0.19 | 0.16 | 67 | 0.48 | |||
| 57BYA054B060X-01 | 6000 | 0.19 | 0.16 | 100.5 | 0.48 | |||
| 57BYA074B020X-01 | 2000 | 0.384 | 0.32 | 67 | 0.96 | |||
| 57BYA074B040X-01 | 4000 | 0.384 | 0.32 | 134 | 0.96 | |||
| 57BYA094B020X-01 | 2000 | 0.54 | 0.45 | 94 | 1.35 | |||
| 57BYA094B040X-01 | 4000 | 0.54 | 0.45 | 188 | 1.35 | |||
| 57BYA114B020X-01 | 2000 | 0.72 | 0.6 | 125 | 1.8 | |||
| 57BYA114B040X-01 | 4000 | 0.72 | 0.6 | 251 | 1.8 |
| 型号 | 峰值电流 | 转矩常数 | 反电势 | 动弹惯量 | 电机 长度 | 电压领域 | 转速领域 | 重量 |
| Units | A | Nm/A | V/KRPM | g.c㎡ | mm | VDC | RPM | Kg |
| 57BYA044B040X-01 | 6 | 0.04 | 4.8 | 31 | 44 | 12~80 | 2000~6000 | 0.25 |
| 57BYA044B060X-01 | 9 | 0.026 | 3 | 31 | 44 | 0.25 | ||
| 57BYA054B020X-01 | 5.58 | 0.081 | 8.57 | 60.5 | 54 | 0.5 | ||
| 57BYA054B040X-01 | 11.1 | 0.045 | 4.8 | 60.5 | 54 | 0.5 | ||
| 57BYA054B060X-01 | 16.7 | 0.028 | 3 | 60.5 | 54 | 0.5 | ||
| 57BYA074B020X-01 | 11.1 | 0.081 | 8.57 | 113 | 74 | 0.75 | ||
| 57BYA074B040X-01 | 22.2 | 0.045 | 4.8 | 113 | 74 | 0.75 | ||
| 57BYA094B020X-01 | 15.6 | 0.081 | 8.57 | 181.5 | 94 | 1 | ||
| 57BYA094B040X-01 | 31.2 | 0.045 | 4.8 | 181.5 | 94 | 1 | ||
| 57BYA114B020X-01 | 20.8 | 0.081 | 8.57 | 242 | 114 | 1.25 | ||
| 57BYA114B040X-01 | 41.6 | 0.045 | 4.8 | 242 | 114 | 1.25 |
| 概括图 |
